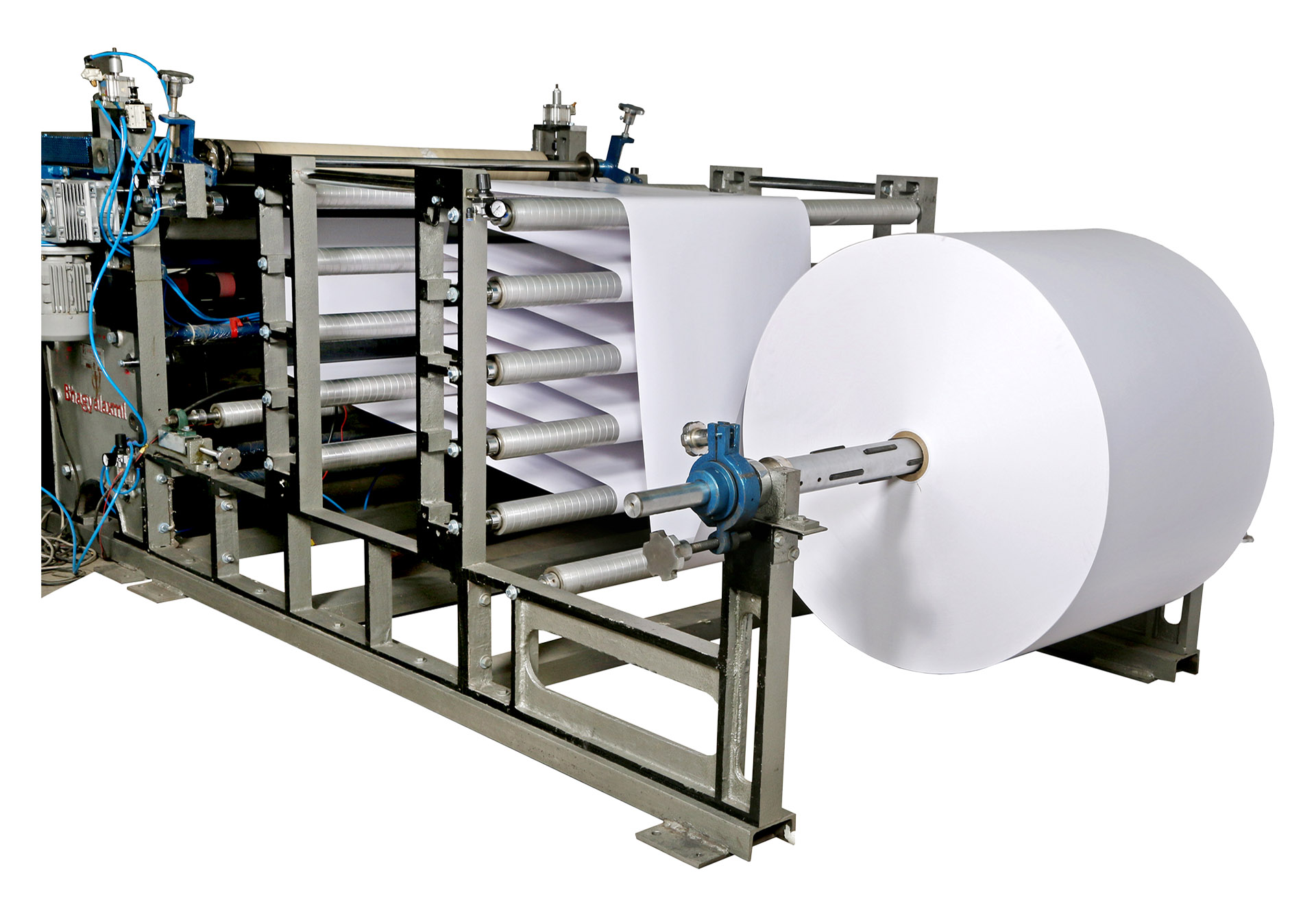

"Bhagyalaxmi" Brand Servo Precision Semi Automatic Paper Reel to Sheet Cutting Machine is an Economy Paper Cutter which is developed by our Company integrating the advanced technology at home and abroad. hence an Innovation and Perfection Product. This machine is driven by AC Servo Motor Motion Controller is equipped and of Quick and stable Paper Cutting hence a High Cutting Precision and Long Service Life. The gentle-touch PLC interface is fine and convenient. The Touch Screen Makes The Operation Simple. Its electrical part is composed of Industrial Control Computer that comes up to International Advance Level, Color Digital Touch Display, Imported Frequency Converter, Photoelectric Sensor, Japanese & Chinese Brand A.C. Servo Motor And Driver with Advanced Control Mode, This Machine Centrally Controls, The Speeds of the Main Servo Motor and Feeding Motor through computer so as to achiever the purpose of synchronous operation. It Has such characteristics as High Speed Precision Cutting. Convenient for taking material up and also have the capability of cuts paper collect in manual collection table, It has paper d-curling unit in machine. it makes paper flat.
| Machine Size | 33", 42", 52", 62" & as Per Requirement. |
| Horizontal Cutting Precision | ± 1 Mm |
| Maximum Cutting Speed | 110Mtr/Min |
| Cutting Length Range | 200 ~ 9999 Mm |
| Max. Paper Collect in Table | 150 ~ 1270 Mm (As Per Requirement) |
| Paper Collect Height | 150 Mm |
| Power | 3 to 6 Kw |
| Machine Gross Weight | 1500~2000 Kg Approximately |
| Reel Stand | One Manual Loading Stand |
| Maximum Unwind Diameter | 1200 mm |
