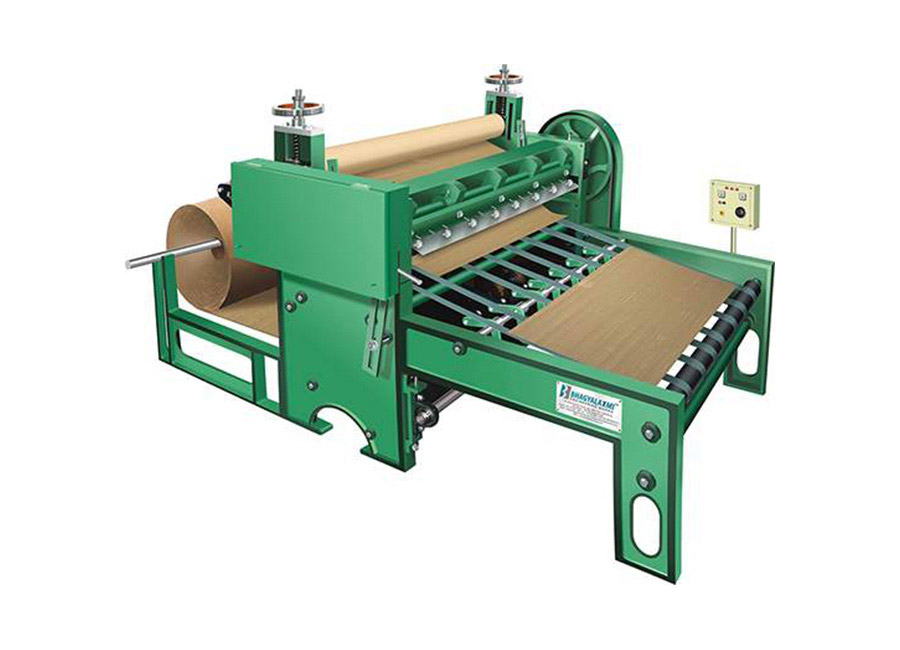

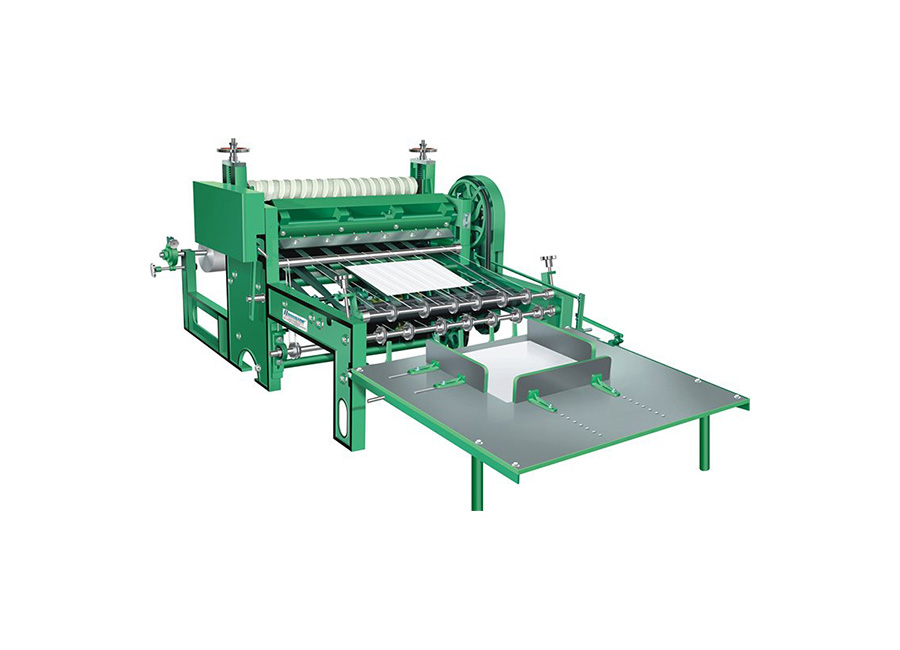

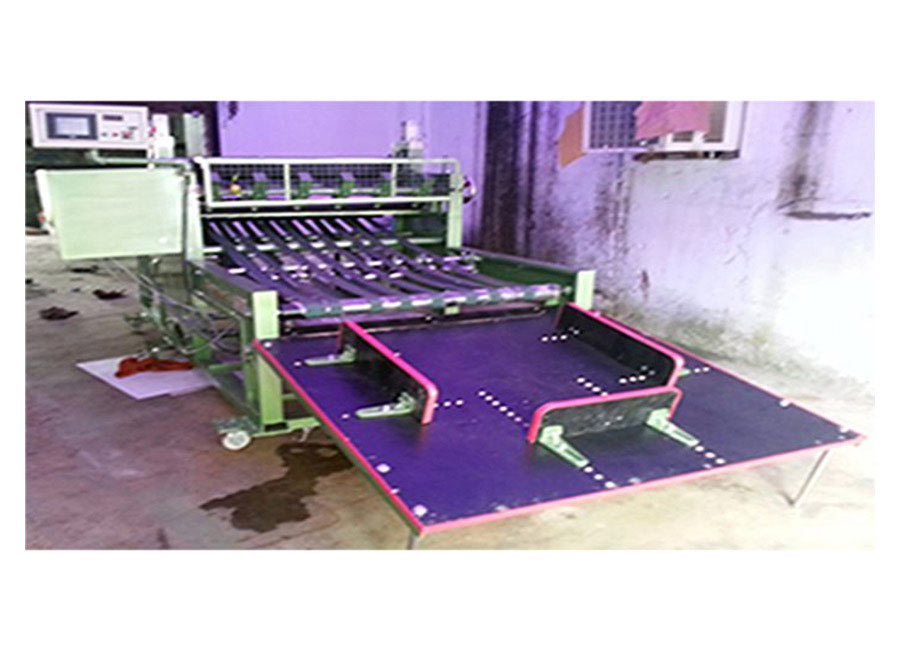

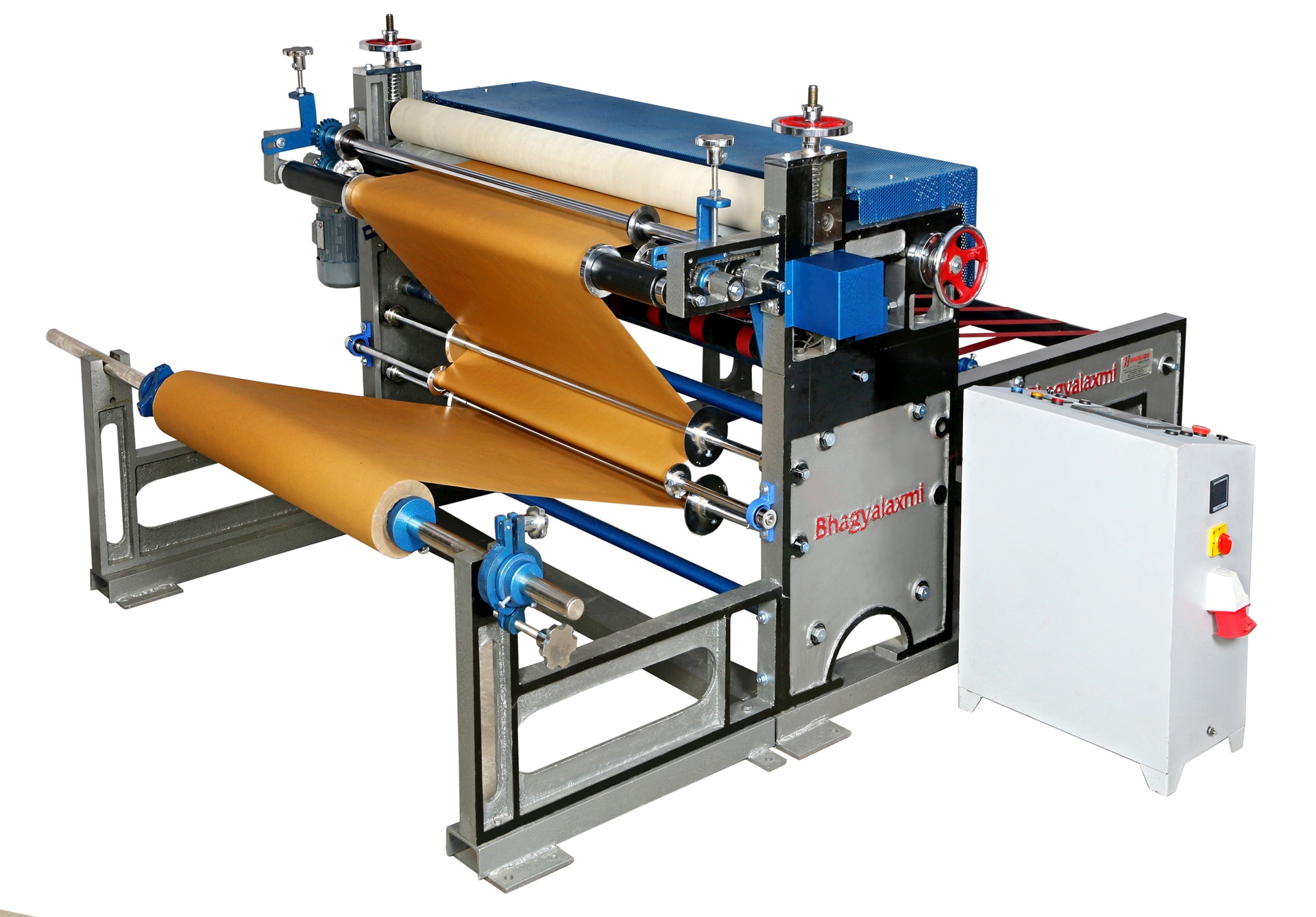

"Bhagyalaxmi" Brand Servo Precision Automatic Rotary Paper Corrugated Sheet Cutting Machine Is An Economy Paper Cutter Which Is Developed By Our Company Integrating The Advanced Technology At Home And Abroad, Hence An Innovation And Perfection Product. This Machine Is Driven By AC Servo Motor Motion Controller Is Equipped And Of Quick And Stable Paper Cutting. Hence A High Cutting Precision And Long Service Life. The Gentle-Touch PLC Interface Is Fine And Convenient.
The Touch Screen Makes The Operation Simple, Its Electrical Part Is Composed Of Industrial Control Computer That Comes Up To International Advanced Level, 7'' Color Digital Display, Imported Frequency Converter, Photoelectric Sensor, Japanese & Chinese Brand A. C. Servo motor And Driver, Electrical Part Is Composed Of Industrial Control Computer That Comes Up To International Advanced Level, With Advanced Control Mode, This Machine Centrally Controls The Speeds Of The Main Servomotor And Feeding Motor Through Computer So As To Achieve The Purpose Of Synchronous Operation. It Has Such Characteristics As High-Precision Cutting, High Speed, Convenient For Taking Material Up, Etc.
Main Technical Parameter:
| Machine Size | 36",45", 55", 65", & as Per Requirement. |
| Maximum Cutting Width | 33", 42",52",62" |
| Maximum Cutting Speed | 108Mtr/min (as per size) |
| Horizontal Cutting Precision | ± 1mm |
| Cutting Length Range | 200 ~ 9999 mm |
| Min to Max. GSM Cut | 60 to 400 mm |
| Power | 3 to 6kw |
| Reel Stand | One Manual Lifting Stand |
| Machine Gross Weight | 1200~2000Kg |
| Maximum Unwinding Diameter | 1100 mm |
