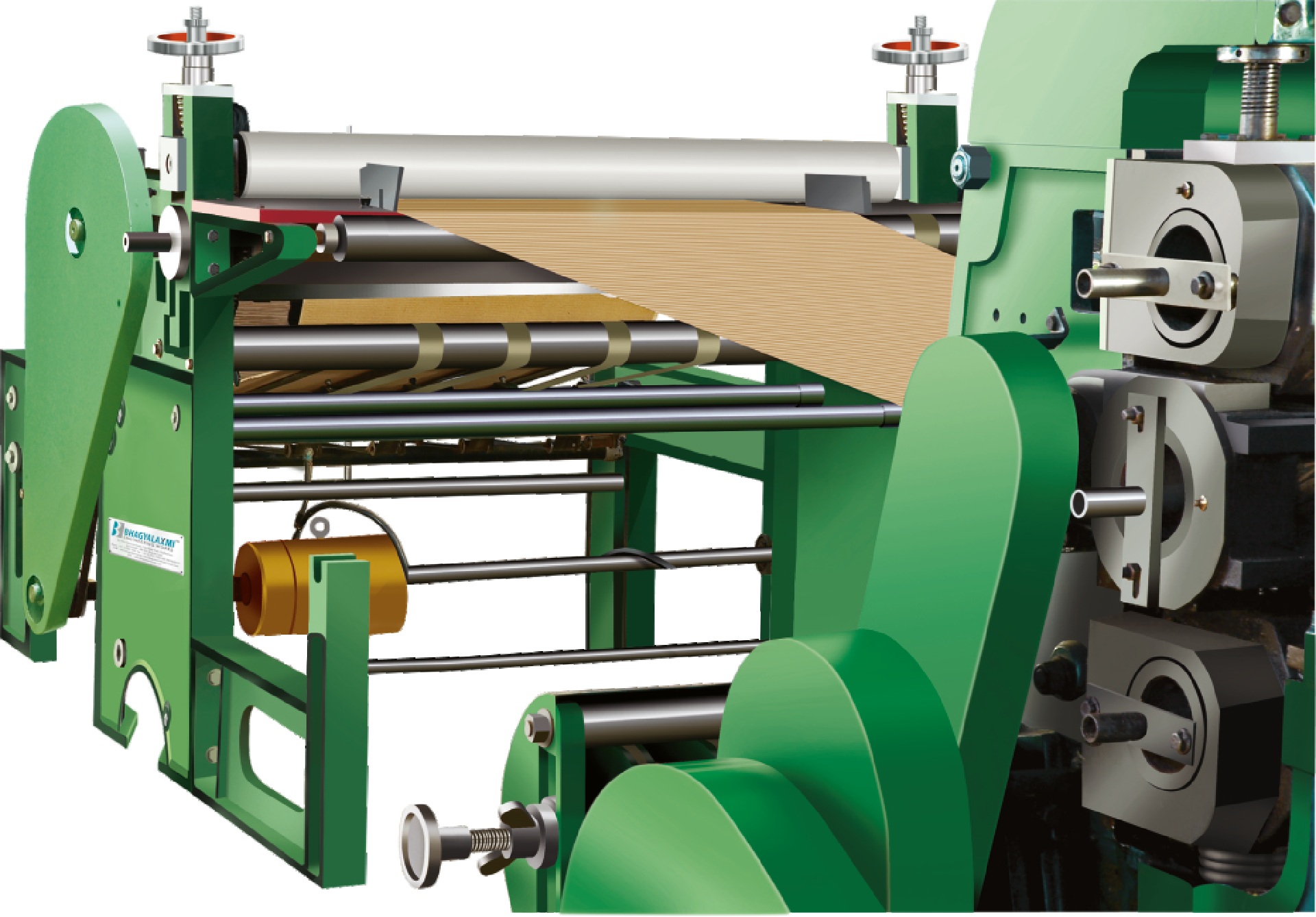

High Speed Rotary Paper Corrugated Sheet Cutter Suitable to use on-line with corrugation machine for sharp cutting of corrugated board without damaging the flute, Machine is provided with one reel stand for cutting Plain Paper and Corrugated Reel also.
Machine is built with heavy Cast Iron side walls and cutting knife of tempered HCHCR (WPS) materials.
Gear's set are provided of Cast Iron/S.G. Iron to cut at exact Required sizes.
Extra Arrangement for Slitting Attachment (If Required) TECHNICAL DATA
| SIZE OF MACHINE |
36”, 48”, 55”, 65” & as per requirement |
| CUTTING LENGTH-MIN/MAX |
5” to 120” |
| LENGTH |
9 Ft. |
| WIDTH |
5 Ft. to 7 Ft. |
| HEIGHT |
5 Ft. |
| WEIGHT |
1200 to 1500 Kgs. |
| POWER |
2 HP or as per required |
