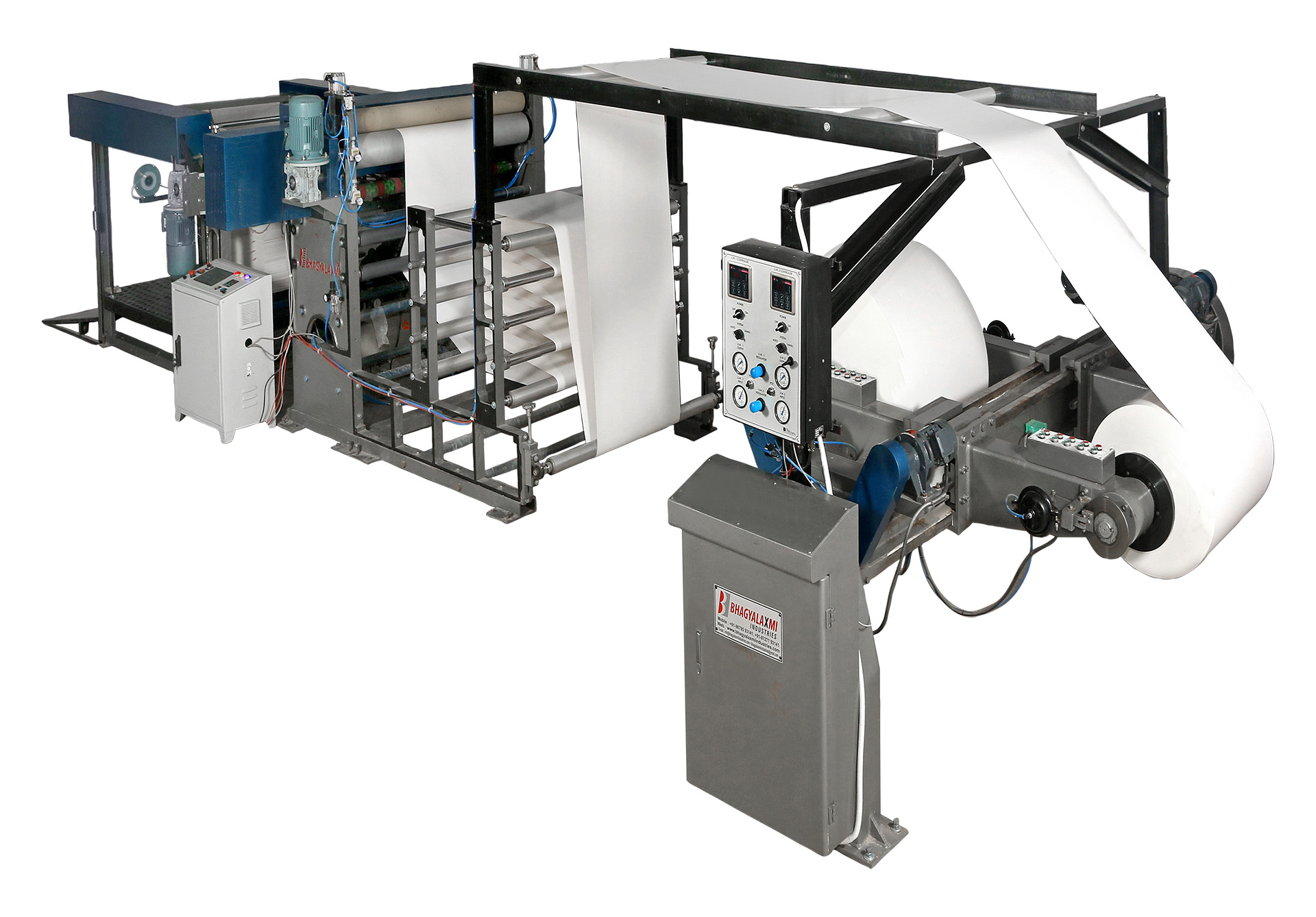

"BHAGYALAXMI" Brand Servo Precision Automatic Paper Reel to Sheet Cutting Machine is an Economy Paper Cutter which is Developed by our Company Integrating the Advanced Technology at Home and Abroad. Hence an Innovation and Perfection Product. This Machine is Driven by AC Servo Motor Motion Controller is Equipped and of Quick and Stable Paper Cutting Hence a High Cutting Precision and Long Service Life. The Gentle-Touch PLC Interface is Fine and Convenient. The Touch Screen Makes The Operation Simple. Its Electrical Part is Composed of Industrial Control Computer that Comes up to International Advance Level, Imported Frequency Converter, Japanese & Taiwan Brand A.C. Servo Motor And Driver with Advanced Control Technology, It Has Such Characteristics as High Speed Precision Cutting. Also Capability of Cuts Paper Collect in Automatic Collection Table with Batch Count System, It has Paper D-Curling unit in Machine.
Machine Technical Details :
Machine Model | 1150mm | 1400mm | 1650mm | 1900mm |
Max. Paper Cutting Width | 1000mm | 1250mm | 1500mm | 1750mm |
Cutting Length Range | 400 to 1250 | 400 to 1250 | 400 to 1600 | 400 to 1600 |
Max. Cutting Meter Speed | 100Mtr/Min | 100Mtr/Min | 100Mtr/Min | 100Mtr/Min |
Max. Cuts Speed | 100 Cuts/Min | 100 Cuts/Min | 100 Cuts/Min | 100 Cuts/Min |
Max. Paper Roll Diameter | 1200mm | 1200mm | 1200mm | 1200mm |
Cutting Precision | ±1mm | ±1mm | ±1mm | ±1mm |
Thickness of Paper Cutting | 100 to 500gsm | 100 to 500gsm | 100 to 500gsm | 100 to 500gsm |
Paper Piling Height | 1000mm | 1000mm | 1000mm | 1000mm |
Air Compressor | 0.6MPA | 0.6MPA | 0.8MPA | 0.8MPA |
Power Consumption | 9KW | 11KW | 12KW | 14KW |
Gross Weight | 2500kg | 3000kg | 3500kg | 4000kg |
