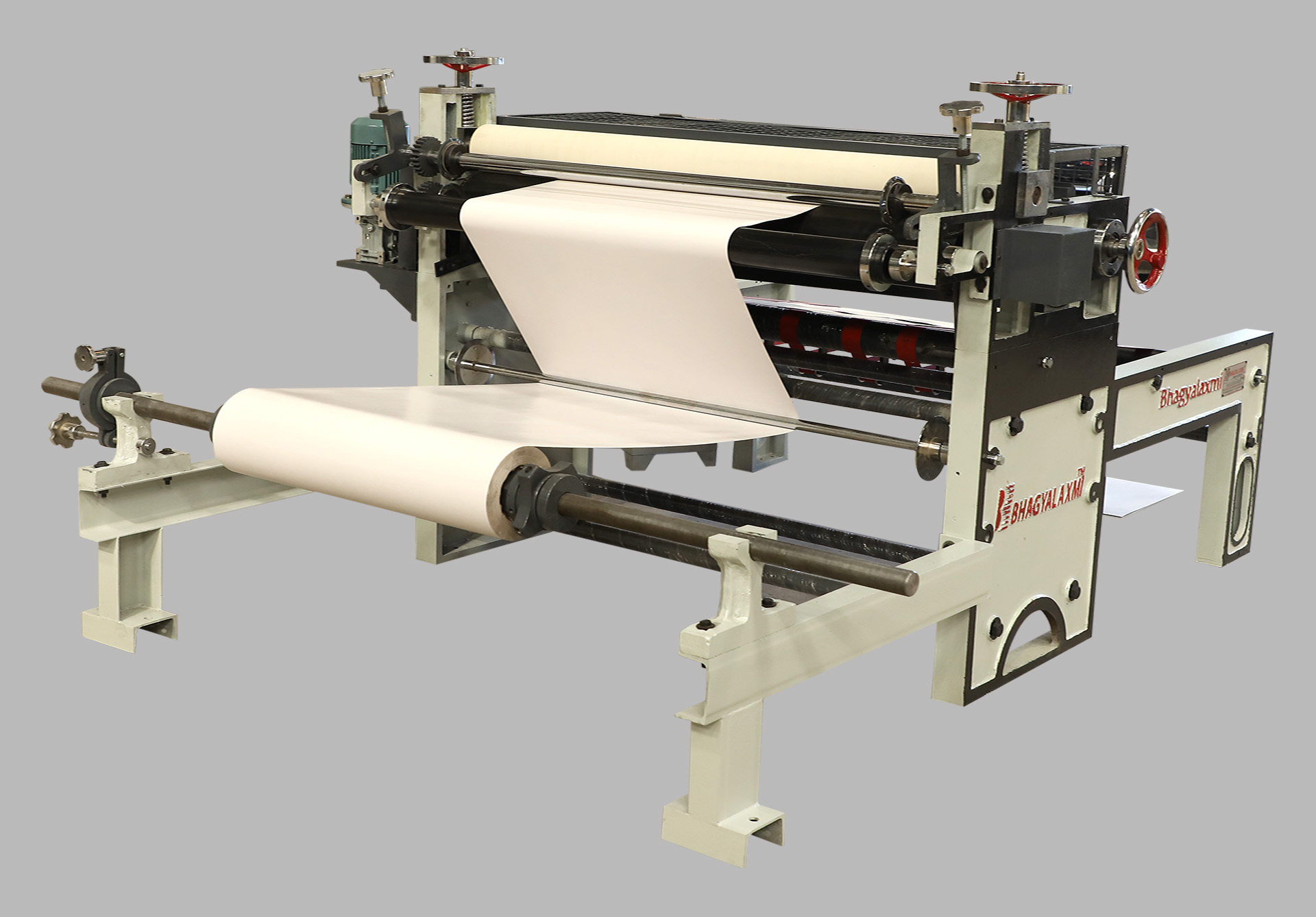

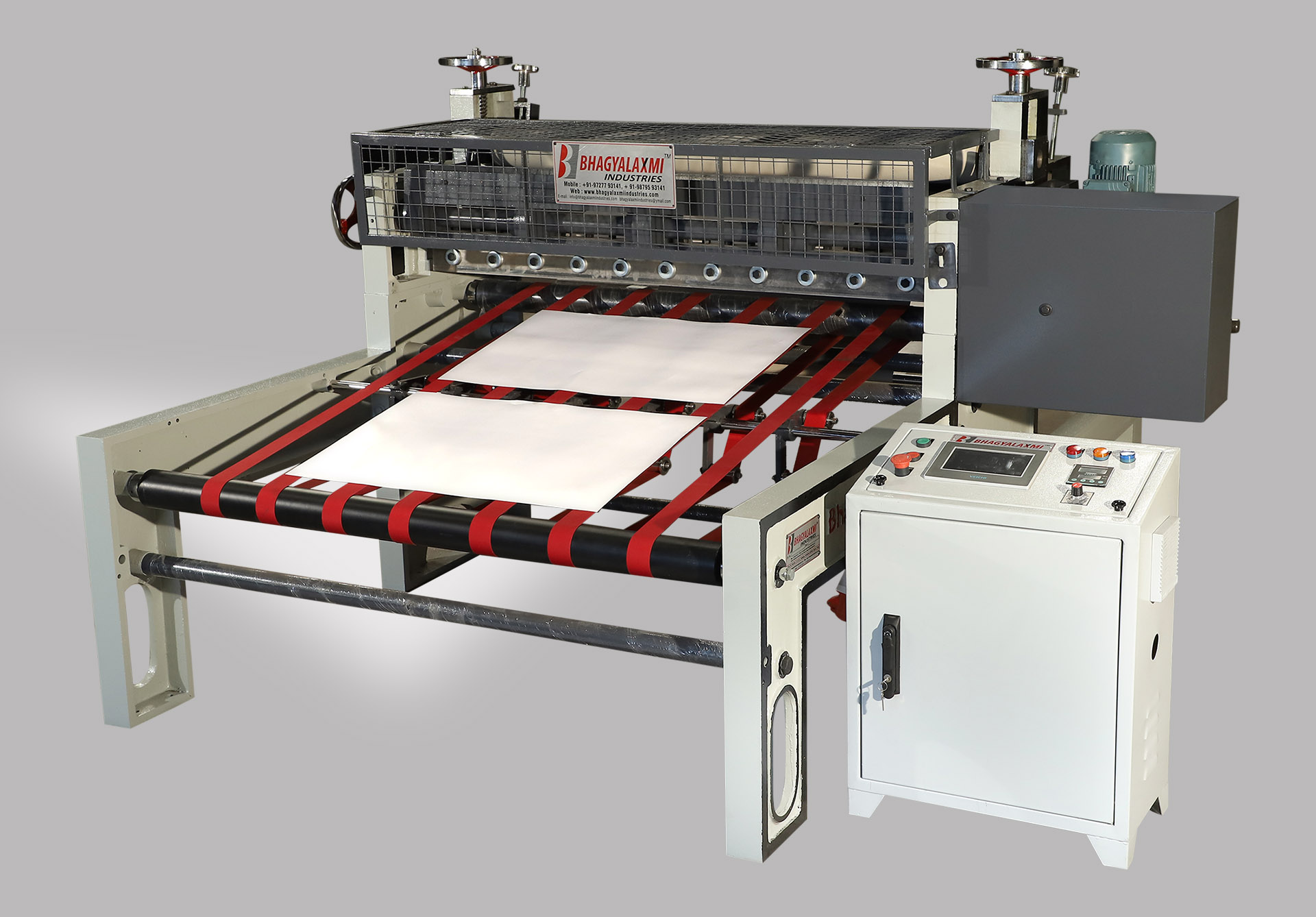

BSP Medium Duty Rotary Paper Corrugated Sheet Cutting Machine

"BHAGYALAXMI" Brand Servo Precision Medium Duty Rotary Paper Corrugated Sheet Cutting Machine Is an Economy Paper Cutter Which Is Developed by Our Company Integrating the Advanced Technology at Home and Abroad. Hence An Innovation and Perfection Product. This Machine Is Driven by AC Servo Motor is Equipped and Of Quick and Stable Paper Cutting Hence a High Cutting Precision and Long Service Life. The Touch PLC Interface is Fine and Convenient. The Touch Screen Makes the Operation Simple. Its Electrical Part Is Composed of Industrial Control Computer That Comes Up to International Advance Level, Color Digital Touch Display, Imported Frequency Converter, Sheet Counter & Sensor, Japanese & Chinese Brand AC. Servo Motor and Driver with Advanced Control Mode, This Machine Centrally Controls, The Speeds of The Main Servo Motor and Feeding Motor Through Computer So as To Achiever the Purpose of Synchronous Operation. It Has Such Characteristics as High-Speed Precision Cutting.
Machine Technical Details :
Machine Size 33", 42", 52", 62"
Cutting Precision ± 2mm
Maximum Cutting Speed65 MTR/Min
Cutting Length Range 50 ~ 9999 mm
Min to Max. GSM Cut80 to 350 GSM
Power Use2.2 to 4kw
Reel StandOne Manual Loading Stand
Machine Weight1200~1700 Kg Approximately
Maximum Paper Roll Diameter 1100 mm
